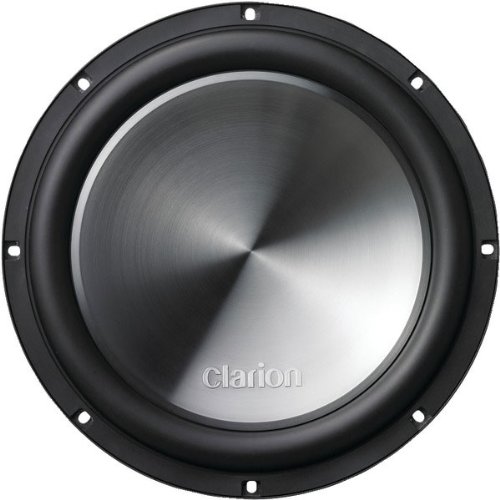

Clarion's WG series are designed to deliver big bass sound with a relatively small investment. The WG3010 is a 12-inch, 4-ohm subwoofer with 900 watts maximum power handling. The WG3010 features a custom shaped steel powder coated chassis with stamped steel basket. WG series subwoofers offer great performance and even better value.  Great performance and even better value. Click to enlarge. |
 Aluminum-finished top cone with high-excursion rubber surround. |
 Speaker dimensions. |
4-Ohm Heavy Duty Voice Coil
Clarion's voice coils provide high sensitivity and excellent performance for digital audio and other large input sounds.
Aluminumized Composite Dust Cap
A stronger dust cap results in a stronger cone.
Reinforced FRP/ Paper Cone Design
These light and rigid speaker cones create low-distortion sound.
Nitrile Butadiene Rubber High Excursion Surround
The rolled edge of the diaphragm provides superior response, while its butyl material is highly durable and moisture resistant. The result is a special rubber surround that cuts distortion and further improves linearity.
Strontium Ferrite Magnets
A high-conductivity magnet is used in Clarion's speaker systems to obtain an airgap magnetic flux density significantly higher than that obtained from ferrite magnets. Combining this magnet with the heat-resistant voice coil results in speakers that are able to deliver powerful playback at large inputs with improved damping while maintaining the integrity of the digital source.
Hyper Extended Rear-Vented Pole Piece
To prevent pressure from building up inside the center cap and causing increased amplitude distortion, a vent is provided on the rear of the pole piece, resulting in completely smooth cone movement, which contributes to the open, airy sound of the speakers.
S.E.T. (Spider Exhaust Technology) Cooling
Heat is the number one enemy of speakers. All of Clarion's Ultra and Platinum woofer drivers feature S.E.T. (Spider Exhaust Technology) Cooling, to allow hot air to escape the speaker's internal motor assembly via computer designed porting.
WG3010 Specifications
- Max Power Handling: 900 Watts
- Continuous Power Handling: 300 Watts
- Frequency Response: 35-1000 Hz
- Efficiency: 83 dB/W/m
- Number of Voice Coils: 1
- Impedance: 4 Ohm
- Outside Dimension: 11-11/16 inches
- Mounting Depth: 6-3/8 inches
- Enclosure Size: 1.1-2.1 feet
What's in the Box
Clarion WG3010 12" Single Voice Coil 4-Ohm Subwoofer
