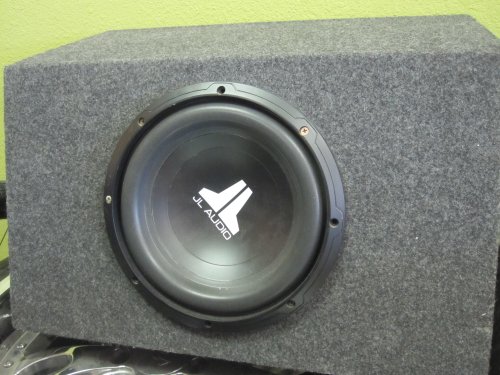

JL Audio 12" Subwooder 12W0V2-4 300W (12W0V2) 12" 4-Ohm |
| Brand: JL Audio
Category: Car Audio or Theater
Buy New: $80.00
as of 2/7/2012 11:30 CST details
New (4) Used (1) Refurbished (1) from $75.00
Seller: Johnnysstuff
Sales Rank: 27818
Media: Electronics
Shipping Weight (lbs): 7.5
Dimensions (in): 13.5 x 13.4 x 7.7
MPN: 12W0V2-4
Model: 12W0V2-4
UPC: 699440921626
EAN: 0699440921626
ASIN: B002PY8KD8
Availability: Usually ships in 1-2 business days
|
|
|
Features:
| • | Impedance 4 Ohm | | • | 500 watt peak / 300 watt rms | | • | Elevated cooling frame | | • | Dma motor system | | • | Mounting depth 5.40" |
|
|
Similar Items:
|
|
|
Editorial Reviews:
Product Description
Free Air Resonance (Fs): 28.43 Hz
Electrical "Q" (Qes): 0.715
Mechanical "Q" (Qms): 10.709
Total Speaker "Q" (Qts): 0.670
Equivalent Compliance (Vas): 2.530 cu. ft. / 71.64 liters
One-Way, Linear Excursion (Xmax) : 0.45 in. / 11.4 mm
Reference Efficiency (no): 0.221%
Efficiency (1W/1m) : 85.64 dB SPL
Effective Piston Area (Sd): 74.509 sq. in. / 0.0481 sq. m
DC Resistance (Re): 4.280 ohm
Nominal Impedance (Znom): 4 ohm
Thermal Power Handling (Pt): 300W
Driver Displacement: 0.048 cu. ft. / 1.36 liters
SPECIFICATIONS
Subwoofer Size : 10"
Design : N/A
Power Handling (RMS per Speaker) : 150 Watts
Power Handling (MAX per Speaker) : 300 Watts
Power Handling (Combined) MAX : N/A
Sensitivity : 84dB
Frequency Response : 22Hz~250Hz
Impedance : 4-Ohms
Mounting Depth : 5.05"
Approximate Weight : 9.5 LBS
|
